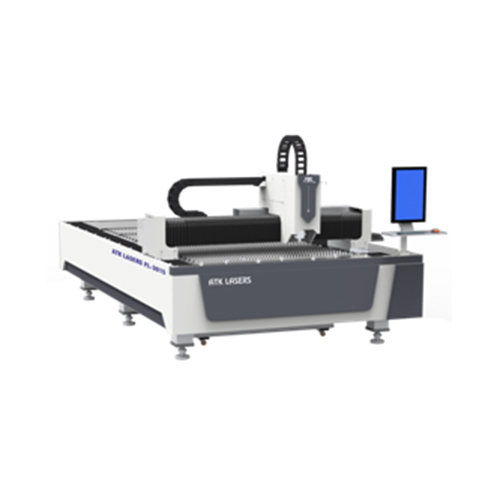

Laser Cutting Machine - Open With Table Exchange

Product Description

Function and Enhancement:

• Wireless remote controller
• Dust cover protector Below
• Low pressure & High Pressure alarm function Input Line
• Laser abnormal alarm
• Active anti-collision system
• Cutting abnormal alarm
• Waste collection box
• Gas low pressure & High Pressure alarm
• Water chiller abnormal alarm
• Industrial PC With 21" LED Panel
• Auto Lubrication System

Machine Technical specification

• Working area 1500*3000mm
• Positioning accuracy:-/+ 0.03 mm
• X/Y axis Repeated Position Precision: -/+ 0.02mm
• Maximum speed individual axis: 120m/min
• Maximum interpolation speed: 260m/min
• Maximum cutting speed: 35m/min
• Maximum Z axis speed= 15m/min
• Maximum acceleration: 1.5 G
• Working Voltage 415-380V 50Hz 3 phase

Machine configuration

• Rail and Block - 25 mm
• Power Transformer for Servo: 220VAC(7.5KVA)
• Isolation transformer: 230VAC (to provide isolation and stable working of machine component)
• Separate Gas Line N2 and O2
• Heavy duty table structure with stress relieved and VMC machine and Grinding.
