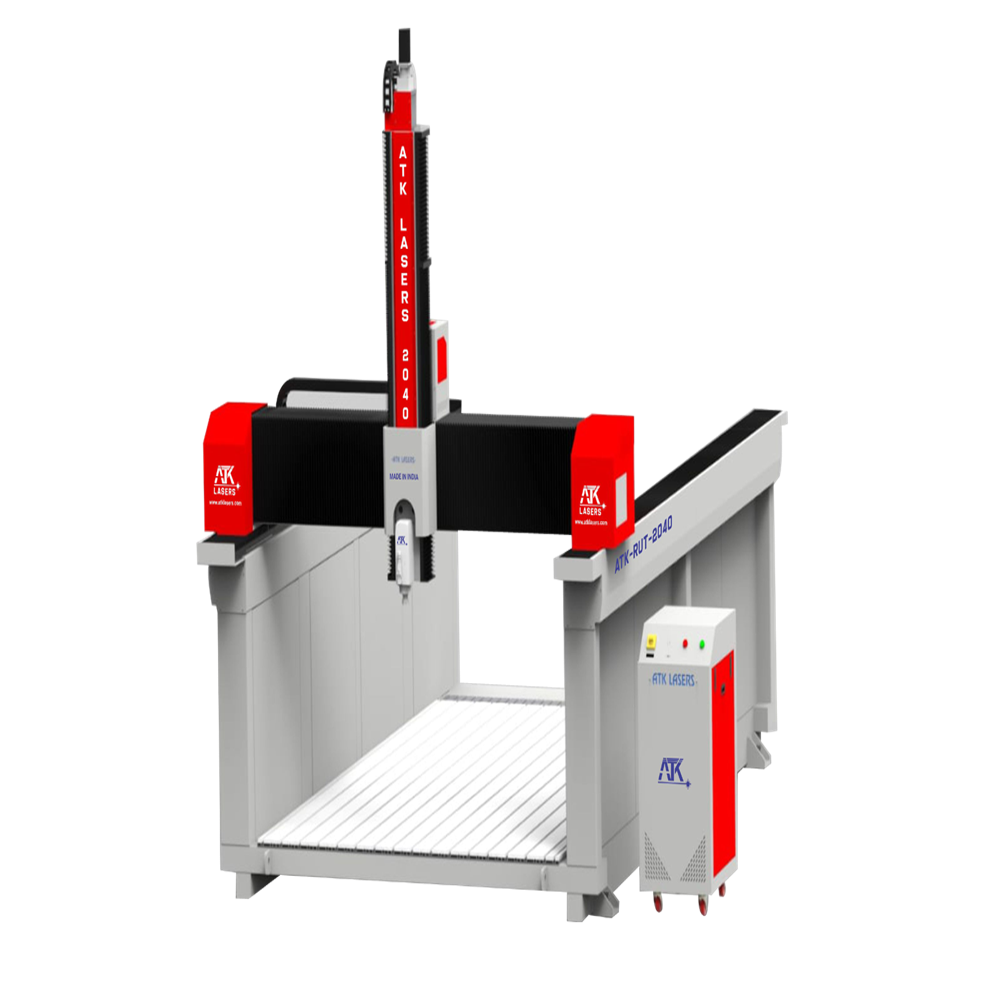

CNC Router Pattern Machine
Product Details:
- General Use Industrial
- Automatic Yes
- Voltage 415 Volt (v)
- Spindle Speed 18000 RPM RPM
- Feature Low Energy Consumption
- Warranty Yes
- Click to View more
CNC Router Pattern Machine Price And Quantity
- 1 Unit
CNC Router Pattern Machine Product Specifications
- Industrial
- Low Energy Consumption
- 18000 RPM RPM
- 415 Volt (v)
- Yes
- Yes
CNC Router Pattern Machine Trade Information
- Cash in Advance (CID)
- 8 Unit Per Month
- 20 Days
- All India
Product Description
Product Description
ATK LASERS - CNC Pattern Making Machine which with Fast Working Speed , Stable Performance and High Precision. to create the shapes un the sand in to which molten metal will be poured to become the casting . Patterns can be made from Tharmacol and Wood With an impressive record of growth in the in the industry we have developed ourselves as the most premising Manufacturer of wide gamut of CNC Pattern Making Machine. The machine that we are offering is precisely manufactured by our dexterous workers using optimum components and cutting edge technology.
- Size- Different Model available
- Power Supply : 3 phase
- Collete : BT-40 / ER- 40
- Z Axis Available : 300/600/800/1000 mm
- Usage : Industrial and Foundry
| No. | Item | Parameters |
| 1 | Working Area (mm) | X 2000, Y 3500, Z 600 mm |
| 2 | ||
| 3 | ||
| 4 | Lead Rail System X,Y,Z | |
| 5 | Spindle power | 7.5 KW ( Air Cooled Spindle) |
| 6 | Rotating Speed | 0-18000 rpm |
| 7 | Collect Diameter | ER 40 |
| 8 | ||
| 9 | Control System | DSP Controller |
| 10 | Build-in Memorizer | 128MB |
| 11 | Data Reading Mode | line by line |
| 12 | Compatible Line Formats | G code,*.u00,*.mmg,*.plt |
| 13 | Working Voltage | AC 415 V 50 Hz |
| 14 | Precision | 0.1mm |
| 15 | Machine Speed | Up to 15 m/min |
| 16 | Work holding Devices | Clamp |
| 17 | Cutting thickness | Depends on material |
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
