CNC Router Machine
CNC Router Machine

CNC Router Machine

Price 600000 INR/ Unit

CNC Router Machine Specification

  • General Use
  • Industrial
  • Automatic
  • Yes
  • Power Source
  • Electric
  • Voltage
  • 230/415 Volt (v)
  • Spindle Speed
  • 18000 / 24000 RPM
  • Feature
  • Low Energy Consumption, High Speed
  • Warranty
  • Yes


CNC Router Machine Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Supply Ability
  • 15 Units Per Month
  • Delivery Time
  • 20 Days
  • Main Domestic Market
  • All India


About CNC Router Machine

  • Structure: Gantry Type Structure,
  • Excellent speed, efficiency, high precision  CNC Router machine built in X, Y Axis drive system rack and pinion with Square linear rails achieving high positioning, motion accuracy & longer life.
  • Working Table with aluminium T-slot and PVC sheet for protection of worktable which ensures for longer life.
  • Optional spindles of various powers (0.8 KW/ 1.5 KW/ 2.2 KW/ 3.2 KW/ 4.5 KW/ 5.5 KW/6 KW) (Water cooled / Air cooled) are also available.
  • Handheld DSP controller to set job parameter, and download from computer via USB cable and USB key also.
  • Original Indian spindle longer life and guaranteed performance.
  • High precision planetary servo gearbox.
  • High torque Easy servo motors and drives system technology.
  • The ATK Lasers make  router having the longer durability due to strongly welded steel structure and the rapid and high quality working capability that causes improvement in the productivity.
  • Industrial chillers, with easy maintenance.



No.

Item

Parameters

1

Working Area (mm)

X 1300, Y  2500, stroke - Z 200

2

Table Structure

T slot Working Table

3

Transmission Systems

X & Y Gear Racks, Z Ball Screw

4

Rail System  X,Y,Z

Linear square guide rails - hiwin

5

Spindle power

6  KW -Air COOLLED

6

Rotating Speed

18000 rpm

7

Collect Diameter

ER 25

8

Drive Systems - XYZ Axis

Servo motor & Planetary  gearbox

9

Control System

NK 105G2  Controller

10

Build-in Memorizer

128 MB

11

Data Reading Model

line by line

12

Compatible Line Formats

G code,*.u00,*.mmg,*.plt

13

Working Voltage

AC 415 V 50 Hz

14

Precision

0.1mm

15

Machine Speed

Up to 25 m/min

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in CNC Router Machine Category

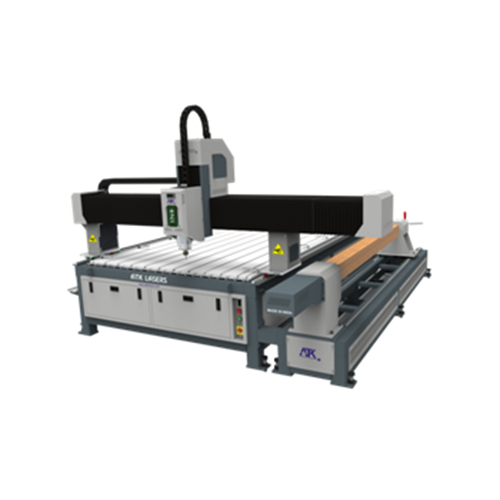

4 Axis CNC Router Side Rotary Lathe Machine
